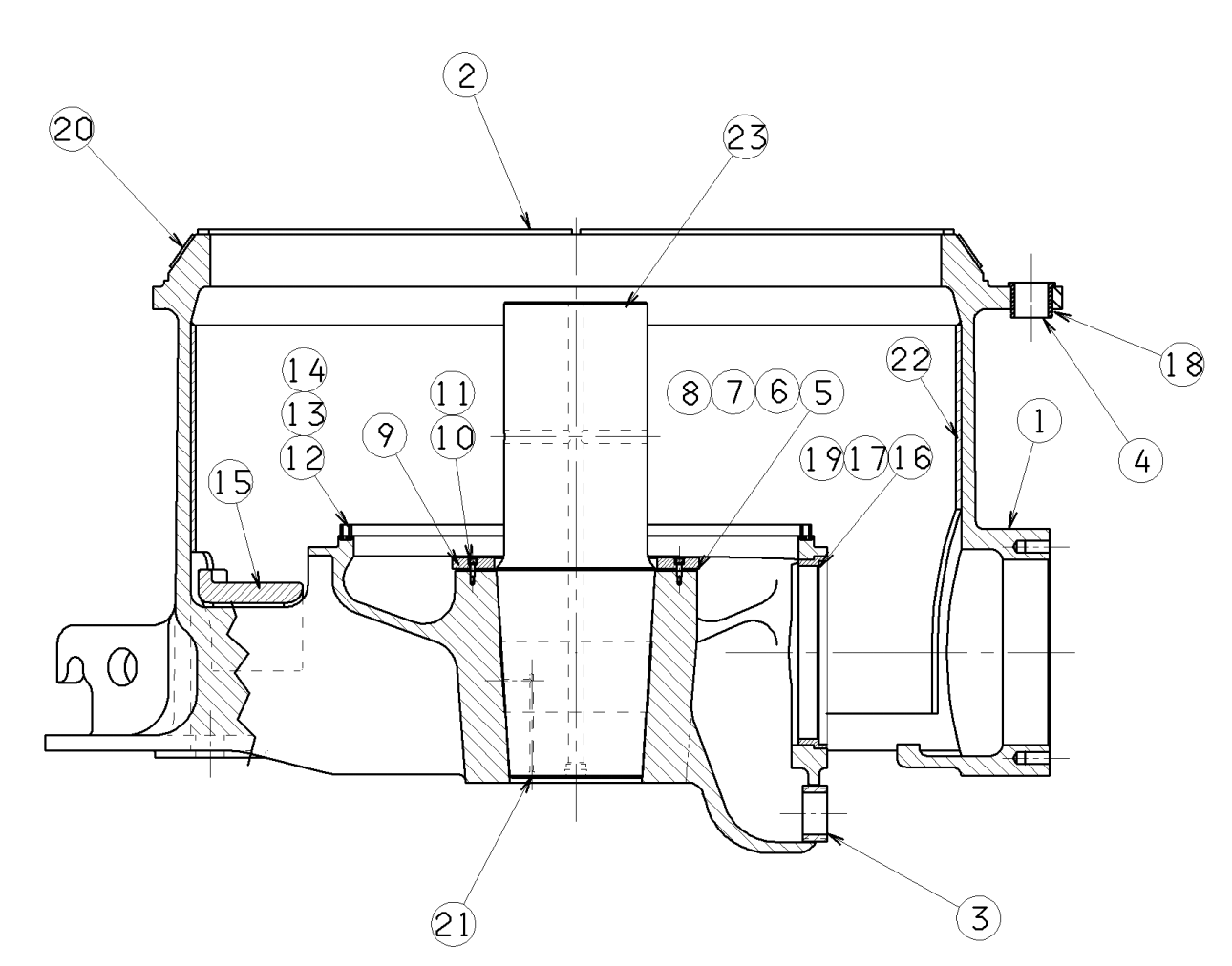

Cone crusher main frame assembly are the major cone crusher parts. It’s consisted of:

1. MAIN FRAME
2. PROTECTION PLATE
3. ADAPTER
4. BUSHING
5. SHIM
6. SHIM
7. SHIM
8. SHIM
9. LOW ER THRUST BEARING
10. RIBBED LOCK WASHER
11. HEXAGON SOCKET HEAD CAP SCREW
12. SEALING
13. ACTIVATOR
14. GLUE
15. ARM GUARD
16. GLUE
17. ACTIVATOR
18. EXCENTRICRETAINING RING
19. FRAME RING
20. LINER
21. PLUG
22. MAIN FRAME LINER
23. MAIN SHAFT

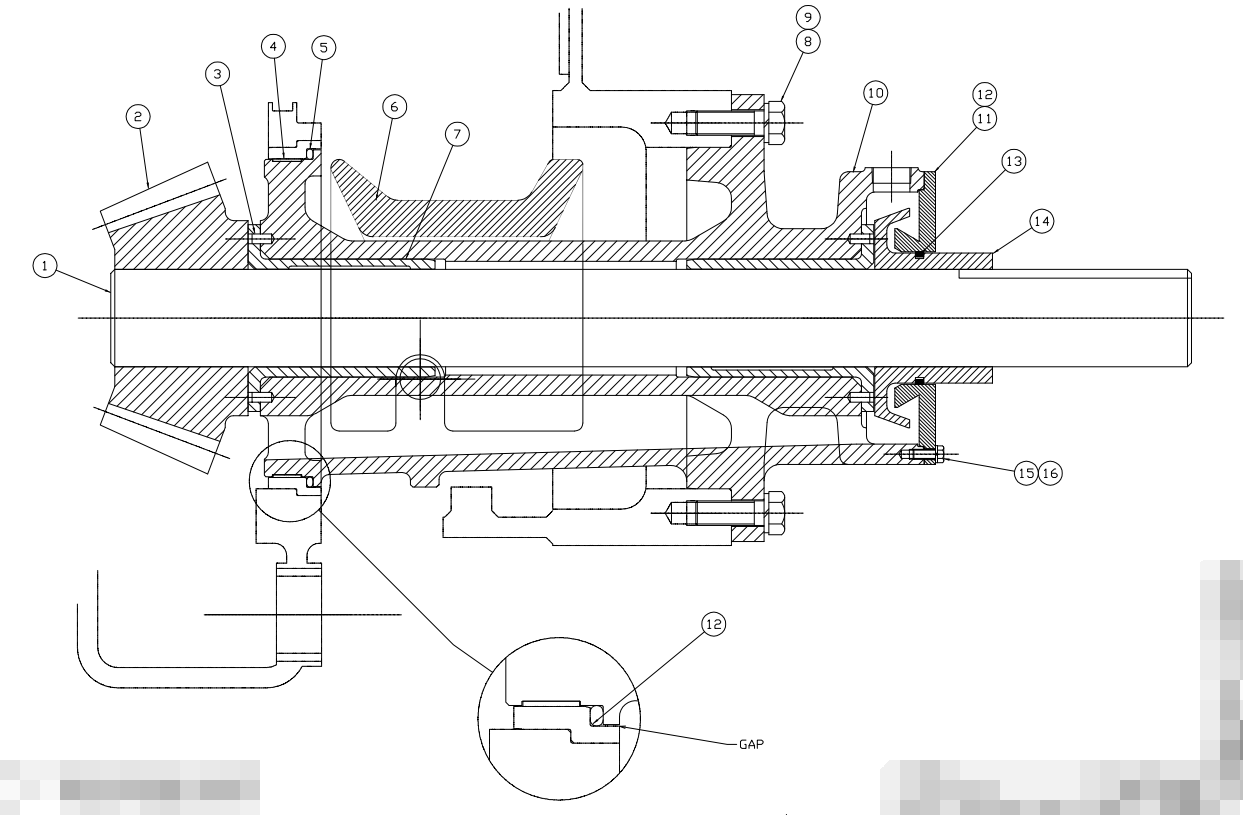

Cone crusher countershaft assembly is the major cone crusher part. It’s consisted of:

1. COUNTERSHAFT
2. PINION
3. SPIRAL PIN
4. WEAR RING
5. O-RING
6. COUNTERSHAFT GUARD
7. BUSHING
8. HEXAGONAL SCREW
9. WASHER
10. COUNTERSHAFT BOX
11. COVER
12. SILICONE SEAL
13. PISTON SEAL
14. OIL FLINGER
15. HEXAGONAL SCREW
16. SERRATED LOCK WASHER

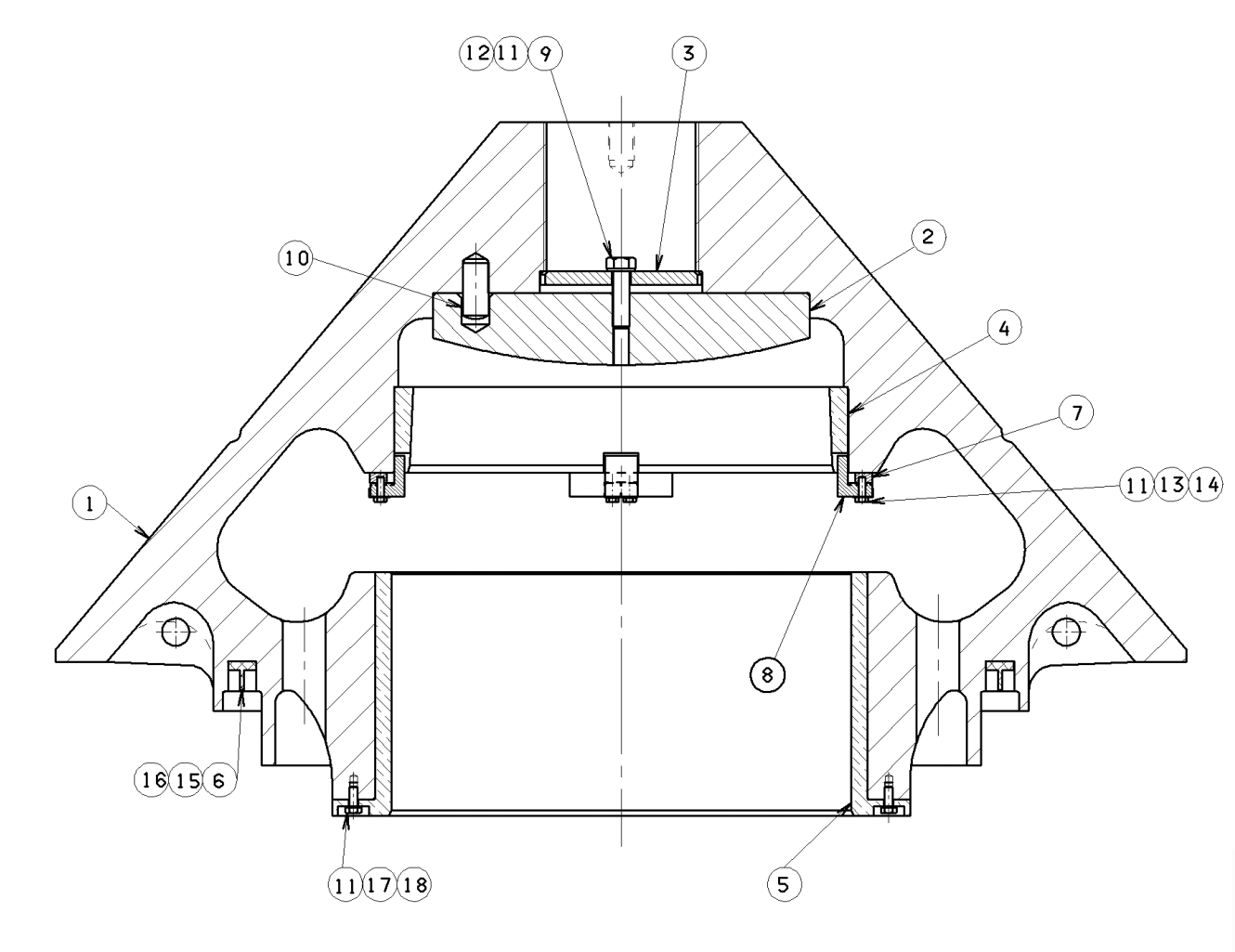

Cone crusher head assembly is the major cone crusher part. It’s consisted of:

1. HEAD
2. HEAD BALL
3. STRAP
4. UPPER HEAD BUSHING
5. LOWER HEAD BUSHING
6. SEAL RING
7. SUPPORT
8. KEY BAR
9. ELASTIC WASHER
10. PIN
11. HARD THREAD LOCKER
12. HEXAGONAL SCREW
13. HEXAGONAL SCREW
14. NUT-LOCK
15. GLUE
16. ACTIVATOR
17. HEXAGONAL SCREW
18. WASHER

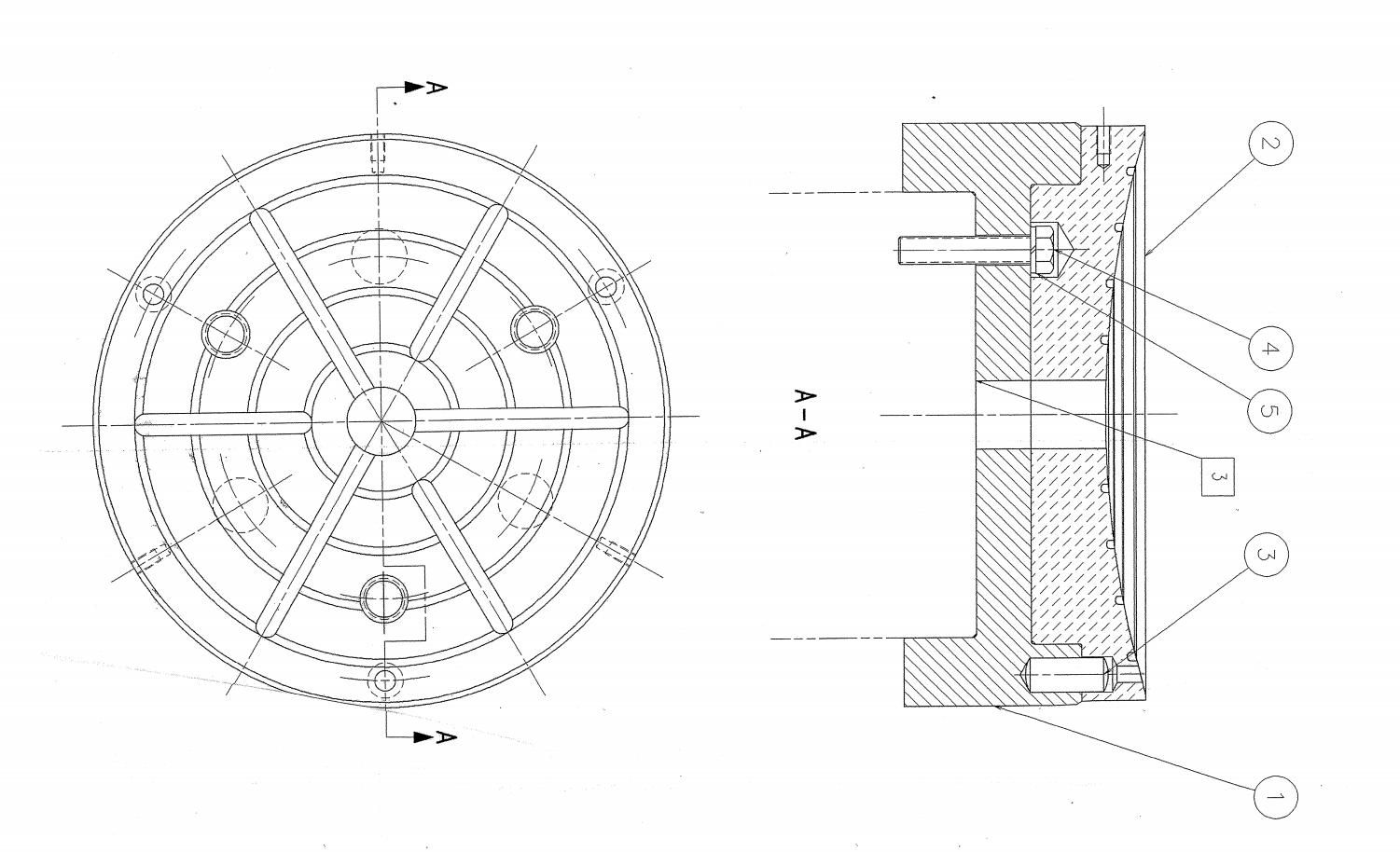

Cone Crusher Socket Assembly is the major cone crusher part. It’s consisted of:

1. SOCKET
2. SOCKET LINER
3. PIN
4. HEXAGONAL SCREW
5. WASHER

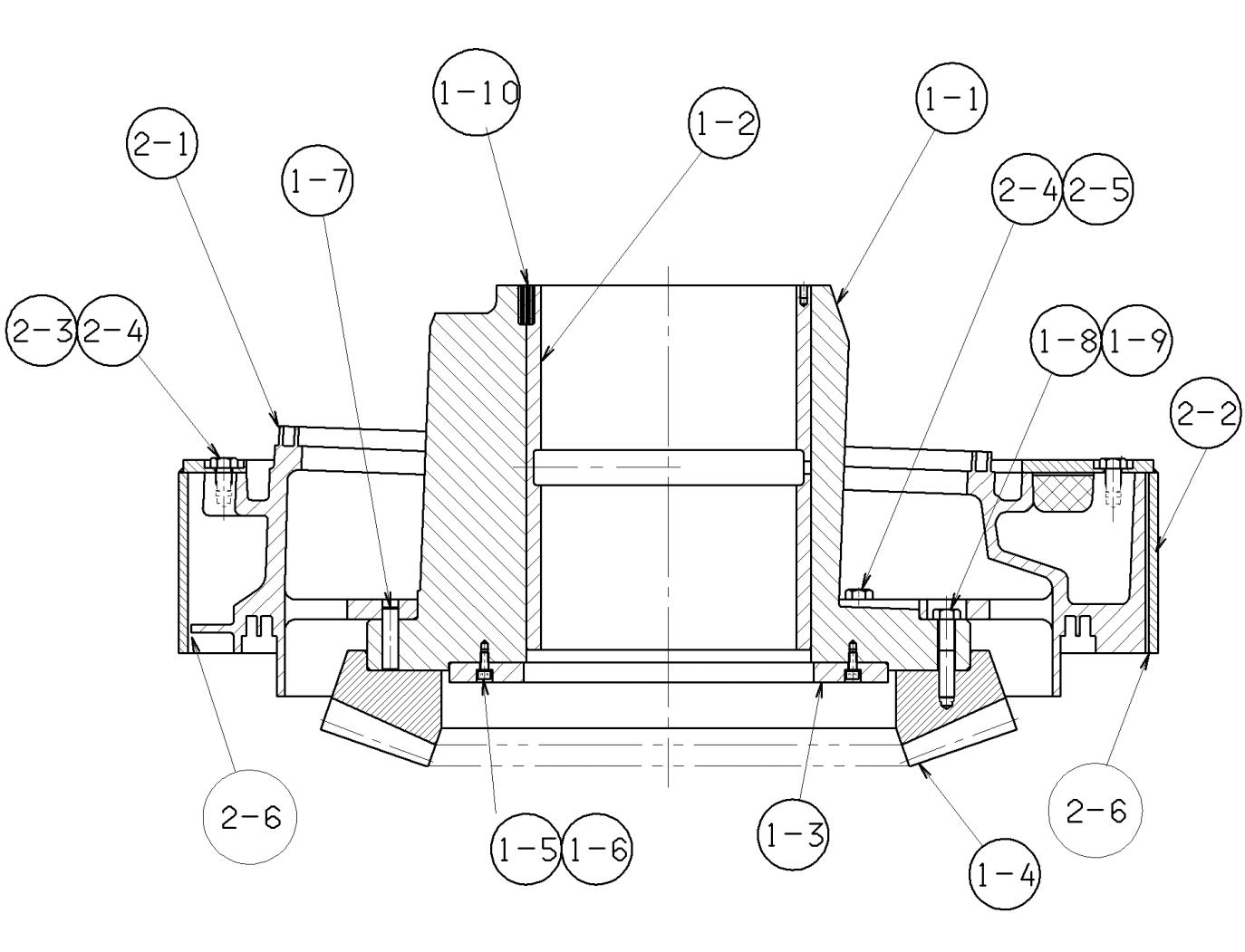

Cone crusher eccentric and counterweight assembly is the major cone crusher part. It’s consisted of:

• 1-1, ECCENTRIC
• 1-2, ECCENTRIC BUSHING
• 1-3, UPPER THRUST BEARING
• 1-4, DRIVE GEAR
• 1-5, HEXAGON SOCKET HEAD CAP SCREW
• 1-6, RIBBED LOCK WASHER
• 1-7, PIN
• 1-8, HEXAGONAL SCREW
• 1-9, HARD THREAD LOCKER
• 1-10, LOCKING COMPOUND
• 2-1, COUNTERWEIGHT
• 2-2, COUNTERWEIGHT LINER
• 2-3, HEXAGONAL SCREW
• 2-4, HARD THREAD LOCKER
• 2-5, HEXAGONAL SCREW
• 2-6, SILICONE SEAL

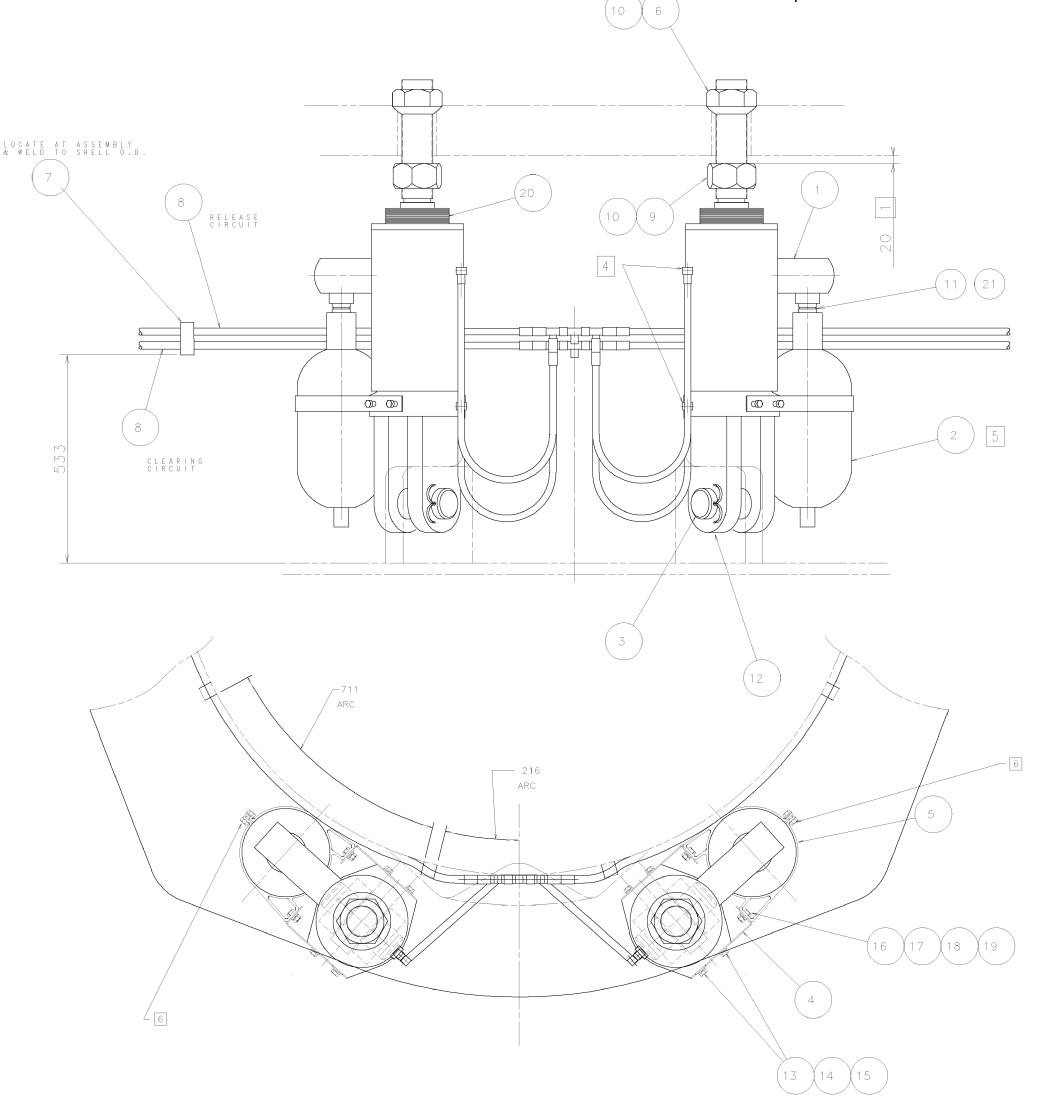

Cone Crusher Tramp Release Assembly is the major cone crusher part. It’s consisted of:

• TRAMP RELEASE CYLINDER
• PRESSURE ACCUMULATOR
• CLEVIS PIN
• BRACKET
• COLLAR
• SPHERICAL NUT
• TUBE
• CLEARING/ RELEASE CIRCUIT
• HEXAGONAL NUT
• HARD THREAD LOCKER
• UNION
• COTTER PIN
• HEXAGONAL SCREW
• WASHER
• SERRATED LOCK WASHER
• HEXAGONAL NUT
• HEXAGONAL SCREW
• WASHER
• SERRATED LOCK WASHER
• PROTECTIVE BELLOWS
• PIPE SEALANT
• CLAMP
• CLAMP

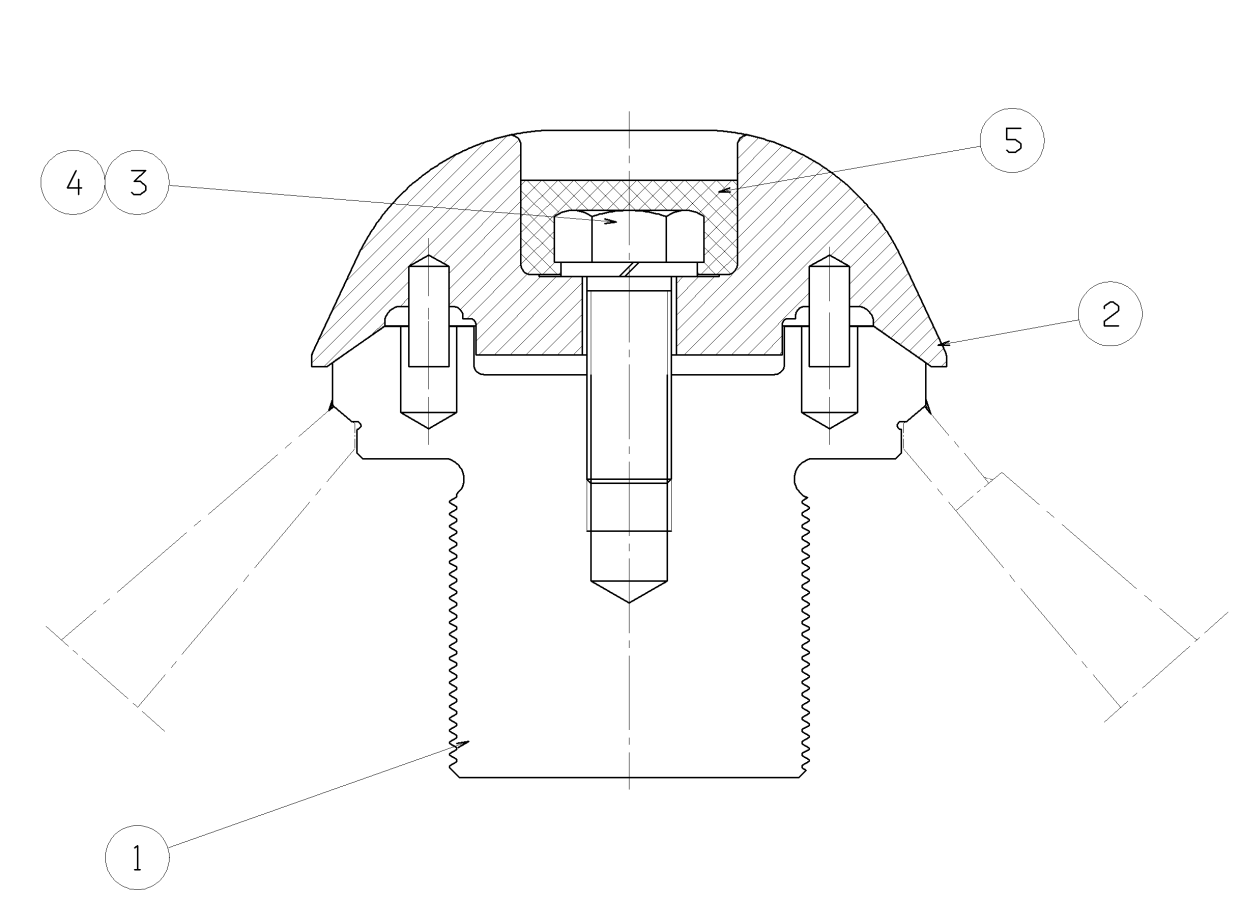

Cone Crusher Feed Plate Assembly is the major cone crusher part. It’s consisted of:

• LOCKING BOLT
• FEED PLATE
• HEXAGONAL SCREW
• WASHER
• SILICONE SEAL

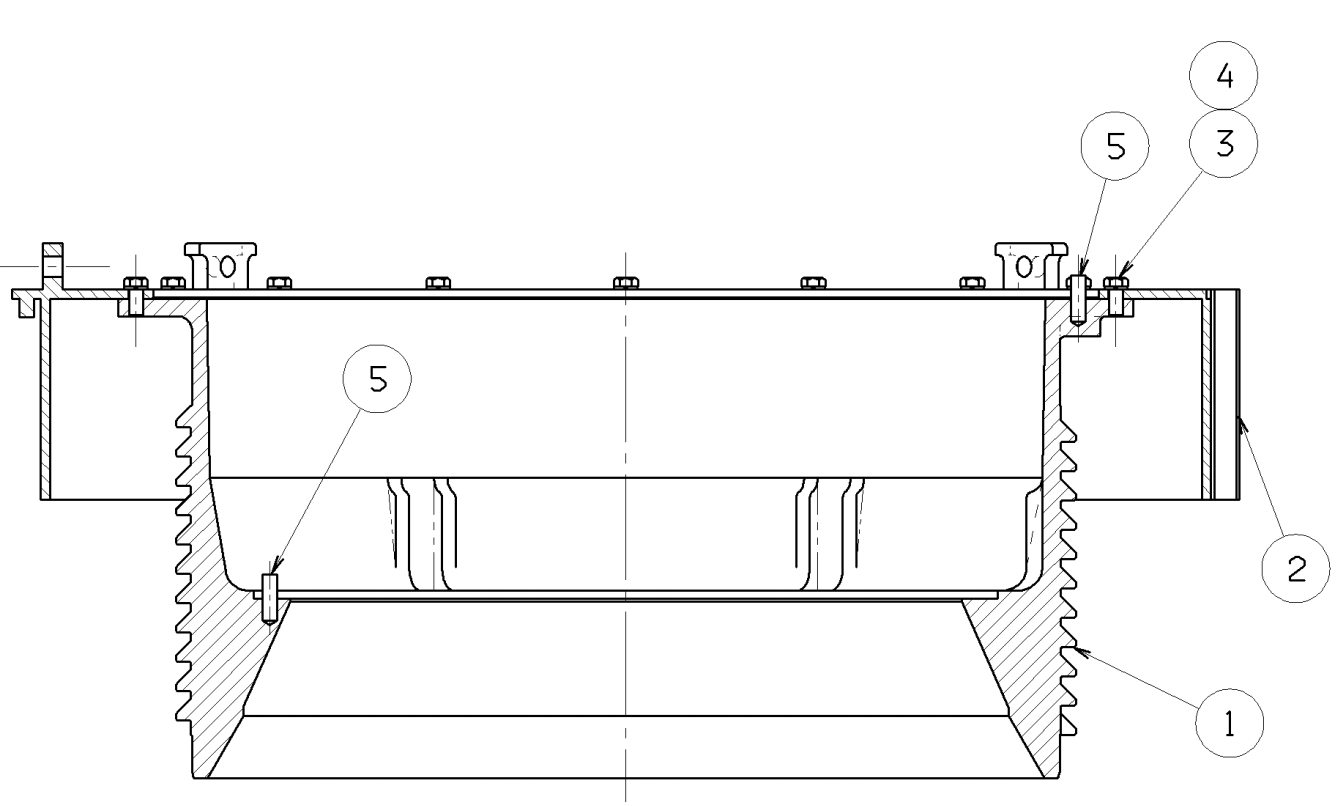

Cone Crusher Bowl Assembly is the major cone crusher part. It’s consisted of:

• BOWL
• ADJUSTMENT CAP
• HEXAGONAL SCREW
• WASHER
• PIN

Cone Crusher Adjustment Ring Assembly is the major cone crusher part. It’s consisted of:

• ADJUSTMENT RING
• CLAMPING RING
• DUST SHELL
• ELBOW
• CLAMPING CYLINDER ASSY
• CLAMP RING SEGMENT
• PLUG
• ELBOW
• HOSE
• HOSE
• GREASE FITTING
• PLUG
• DUST SEAL
• SOCKET HEAD SET SCREW
• HEXAGONAL SCREW
• SPACER
• HEXAGONAL SCREW
• WASHER
• PLUG
• PIN
• HEXAGONAL SCREW
• WASHER
• SERRATED LOCK WASHER
• HEXAGONAL NUT
• PLUG
• FLAT BAR
• HEXAGONAL SCREW
• SERRATED LOCK WASHER

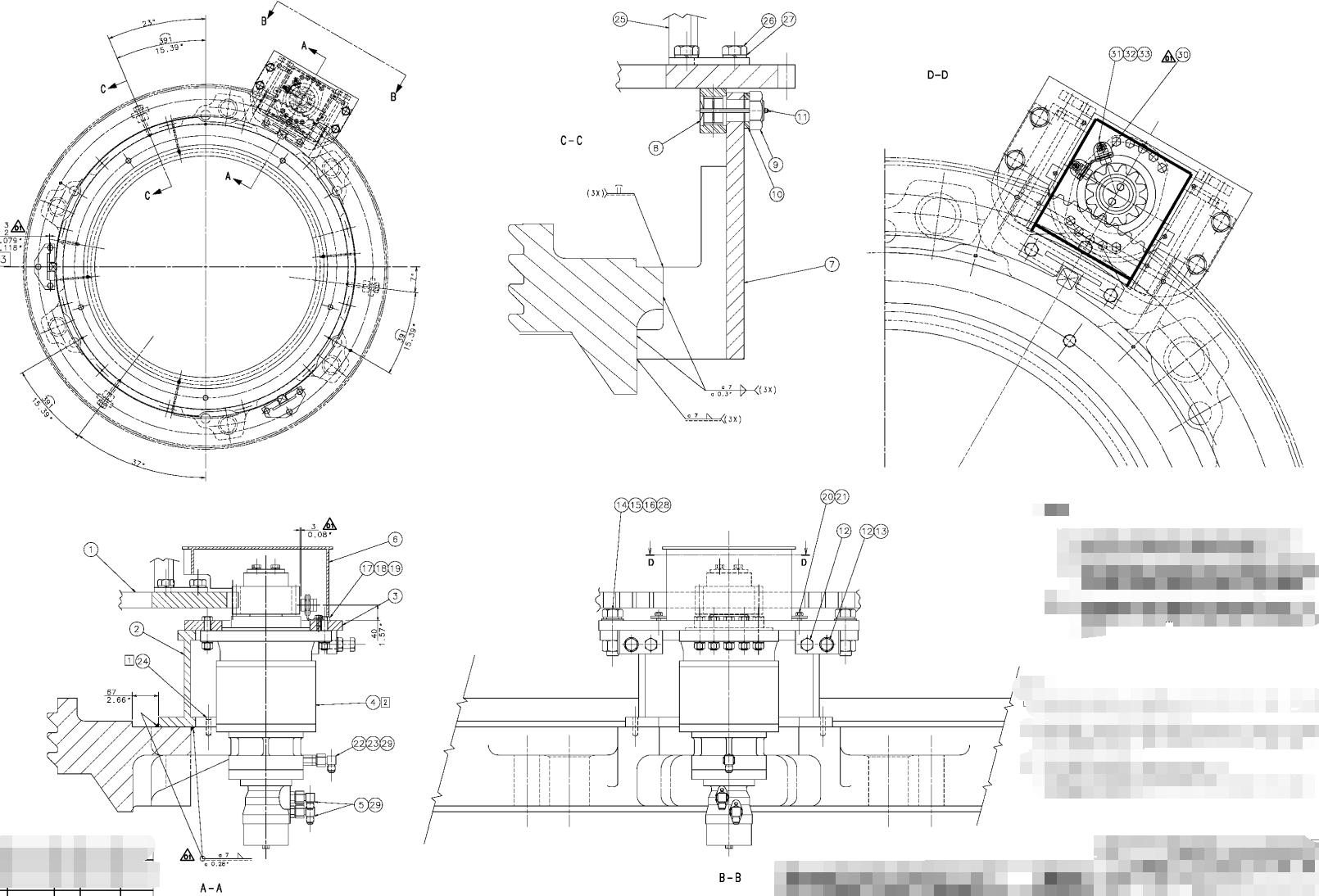

Cone Crusher Adjustment Mechanism Assembly is the major cone crusher part. It’s consisted of:

• DRIVE GEAR
• MOUNTING SUPPORT
• MOUNTING PLATE
• HYDRAULIC MOTOR ASSEMBLY
• MALE STRAIGHT THREAD
• PROTECTION COVER
• BEARING SUPPORT
• TROLLEY
• NUT
• WASHER
• GREASE FITTING
• HEX CAP SCREW
• WASHER
• HEX CAP SCREW
• HEX. NUT
• LOCK WASHER
• HEX CAP SCREW
• HEX. NUT
• LOCK WASHER
• HEXAGONAL SCREW
• LOCK WASHER
• ADAPTER
• STRAIGHT ADAPTER
• SPRING PIN
• BRACKET
• HEX CAP SCREW
• LOCK WASHER
• WASHER
• ELBOW

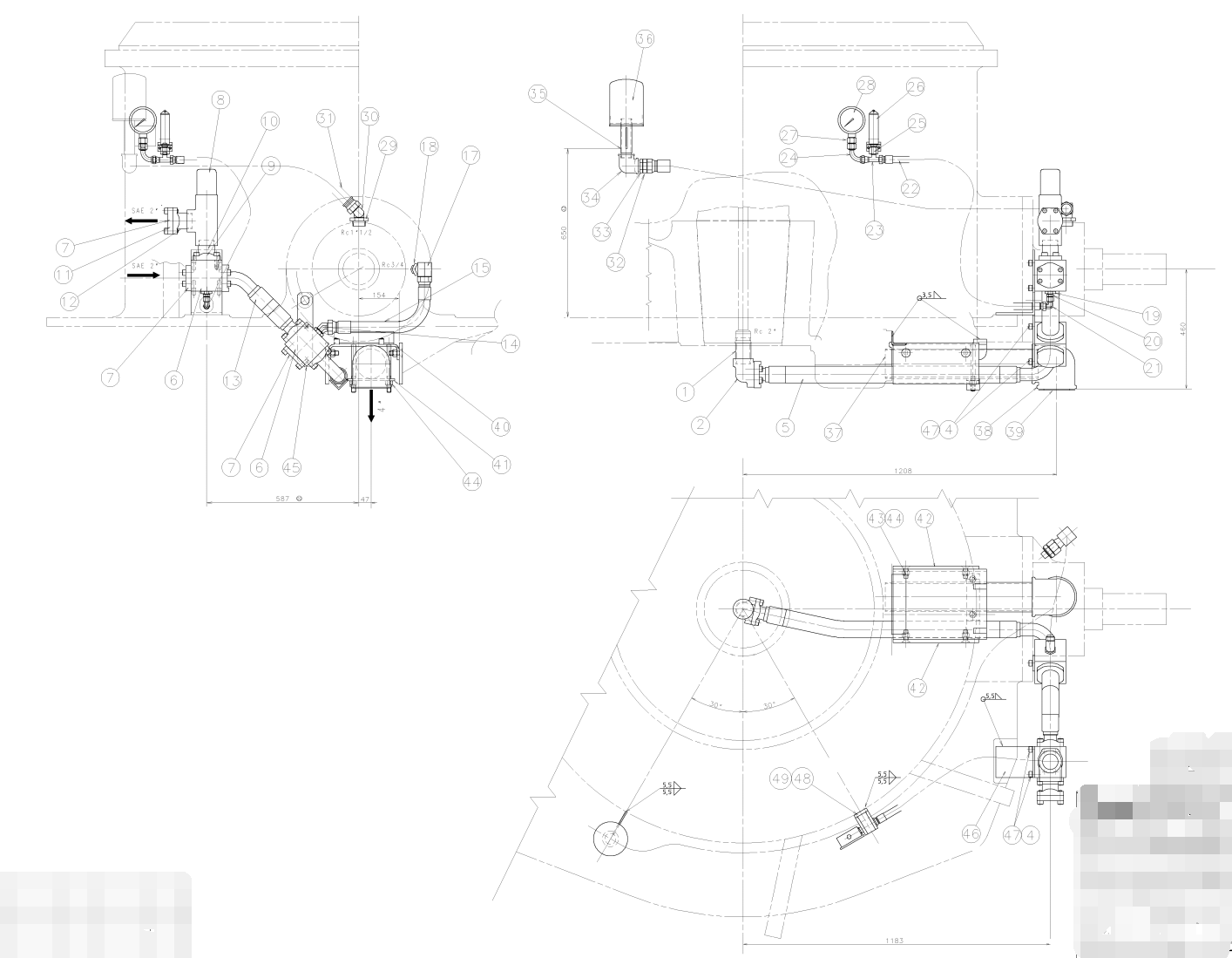

Cone Crusher Oil Piping Assembly is the major cone crusher part. It’s consisted of:

1. TUBE
2. FLANGE
3. WASHER
4. FLEXIBLE HOSE
5. DRILLED BLOCK
6. FLANGE
7. PRESSURE LIMITER
8. FLANGE
9. ADAPTOR FLANGE
10. FLANGE
11. ADAPTOR FLANGE
12. FLEXIBLE HOSE
13. ELBOW
14. HYDRAULIC HOSE
15. ELBOW ADAPTER
16. MALE CONNECTION
17. ADAPTER
18. ADAPTER
19. ELBOW ADAPTER
20. HYDRAULIC HOSE
21. EQUAL TEE
22. ELBOW
23. ADAPTER
24. PRESSURE SWITCH
25. ADAPTER
26. MANOMETER
27. NIPPLE
28. 45°ELBOW ADAPTER
29. HYDRAULIC HOSE
30. MALE CONNECTION
31. NIPPLE
32. ELBOW
33. SUPPORT
34. AIR FILTER
35. TUBE
36. ELBOW
37. PLASTIC PLUG
38. SUPPORT
39. CLAMP RING SEGMENT
40. PROTECTION PLATE
41. SOCKET FLAT HEAD SCREW
42. SELF-LOCKING NUT
43. SUPPORT
44. SUPPORT
45. HEXAGONAL SCREW
46. SUPPORT
47. HEXAGONAL SCREW
48. PROTECTION PLATE

Cone Crusher Hopper Assembly is the major cone crusher part. It’s consisted of:

1. UPPER HOPPER
2. LOWER HOPPER
3. SUPPORT
4. CONICAL HOPPER

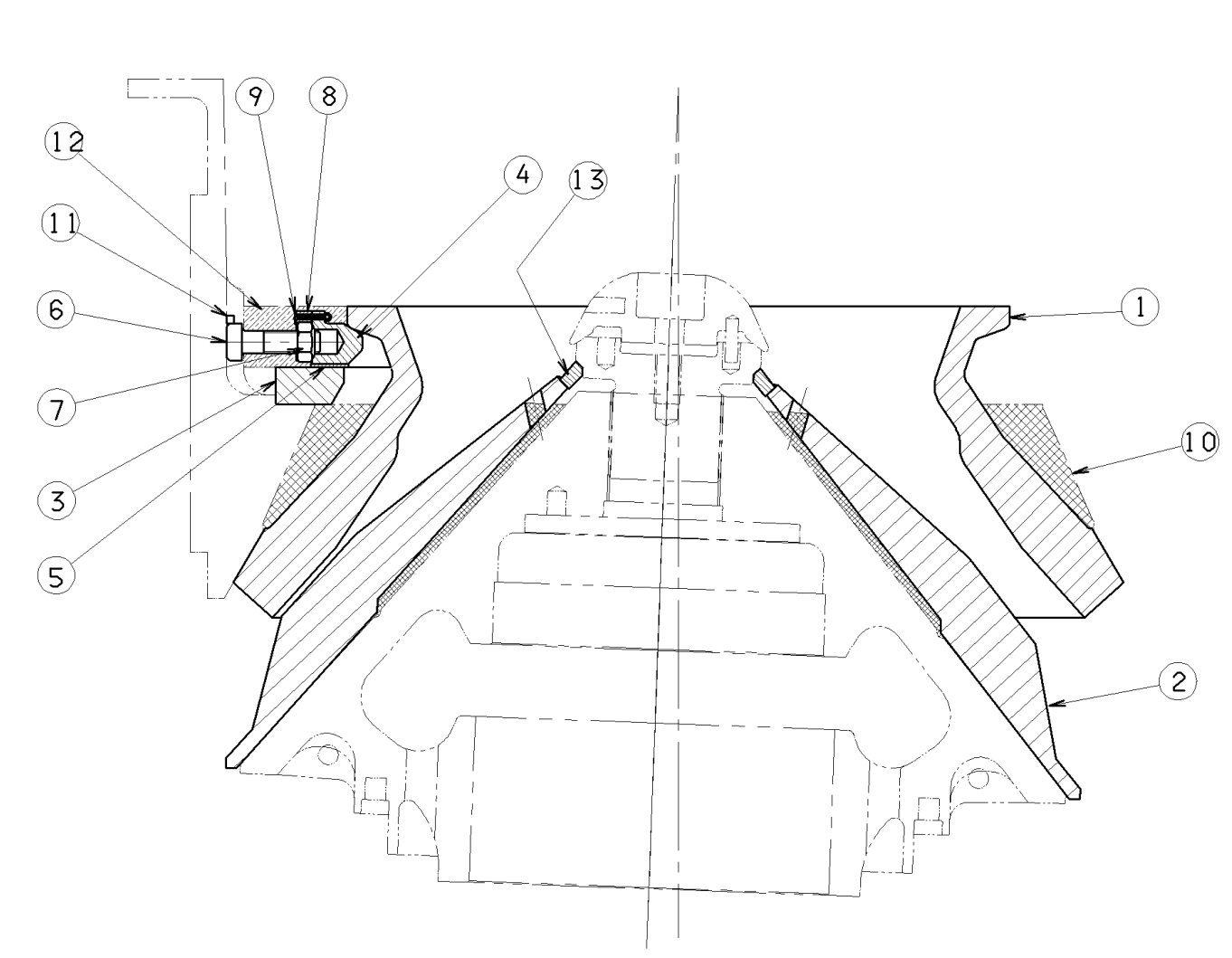

Cone Crusher Liners Set is the major cone crusher part. It’s consisted of:

1. BOWL LINER
2. MANTLE
3. BOWL ADAPTER RING
4. WEDGE
5. SHIM
6. SQUARE HEAD SCREW
7. SPHERICAL NUT
8. NUT LOCK
9. COTTER PIN
10. FIXING AGENT
11. SQUARE
12. FELT STRIP
13. TORCH RING
